| PIRANIO'S ANTIQUE AUTOMOTIVE |
|
| DYNO SHEET |
|
RUN NUMBER: |
2 |
| DESCRIPTION: |
PLUG OVER CYLINDER 28 DEGREES TIMING |
|
DATE: |
|
1/6/2013 |
|
|
|
|
PHONE: |
|
|
|
|
|
|
|
| ENGINE: |
SHOP STREET ROD |
|
|
|
TIME: |
2.50 PM |
|
|
|
|
|
|
|
| ENGINE
NUMBER: |
CAAR9377 |
|
CU. IN. |
|
213.735 |
|
|
|
| BAROMETRIC
PRESSURE: |
30.43 |
ELEVATION: |
590 |
TEMPERATURE: |
68 |
|
| STATION
PRESSURE: |
29.7963 |
|
CORRECTION FACTOR: |
1.054786 |
|
| HUMIDITY: |
65 |
|
|
| ENGINE |
TEMPERATURE: |
180 |
|
FUEL: |
10% ETHANOL REGULAR GASOLINE |
|
| |
|
|
|
|
|
|
|
|
|
|
|
| RPM |
|
GAUGE |
TORQUE |
HORSEPOWER |
CORRECTED |
VOLUMETRIC |
| |
|
READING |
|
|
|
|
HORSEPOWER |
EFFIECENCY |
|
| |
|
| 1300 |
|
13.6 |
153.39 |
|
37.97 |
|
40.05 |
|
80.71436 |
|
| 1500 |
|
13.9 |
157.44 |
|
44.97 |
|
47.43 |
|
82.84598 |
|
| 1700 |
|
14.2 |
161.58 |
|
52.30 |
|
55.17 |
|
85.02209 |
|
| 2000 |
|
14.6 |
167.23 |
|
63.68 |
|
67.17 |
|
87.99779 |
|
| 2200 |
|
14.5 |
165.80 |
|
69.45 |
|
73.26 |
|
87.24557 |
|
| 2500 |
|
14.1 |
160.19 |
|
76.25 |
|
80.43 |
|
84.2916 |
|
| 2700 |
|
13.5 |
152.06 |
|
78.17 |
|
82.45 |
|
80.01322 |
|
| 3000 |
|
12.9 |
144.24 |
|
82.39 |
|
86.90 |
|
75.8983 |
|
| 3500 |
|
0.00 |
|
0.00 |
|
0.00 |
|
0 |
|
| 4000 |
|
|
0.00 |
|
0.00 |
|
0.00 |
|
0 |
|
|
|
|
|
|
|
|
| DESCRIPTION: |
|
|
|
| SPARK
PLUGS OVER CYLINDER |
|
|
|
|
|
|
| 28 DEGREES
TIMING |
|
| 12.5-1 AIR
FUEL RATIO ALL THROUGH |
|
| CAST IRON
HEADER, SMITHYS MUFFLER |
|
| WEBER 32-36
DGEV CARBURETOR & INTAKE MANIFOLD |
|
| 65 PRIMARY
IDLE JET, 70 SECONDARY IDLE JET |
|
| 150 PRIMARY
MAIN JET, 145 SECONDARY IDLE JET |
|
| 145 PRIMARY
AIR CORRECTOR JET, 165 SECONDARY AIR CORRECTOR JET |
|
| CHAMPION
N11YC SPARK PLUG .032" GAP |
|
| CRANE
F-220/320-12 CAMSHAFT |
|
|
| PIRANIO'S ANTIQUE
AUTOMOTIVE |
|

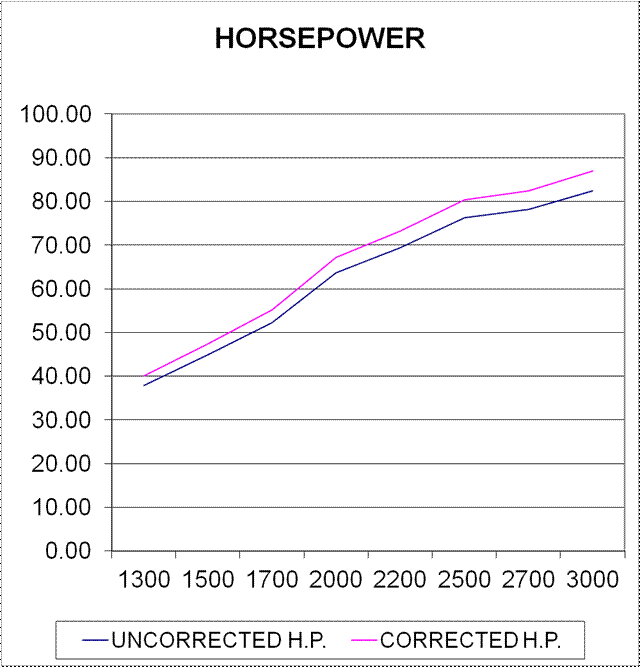

| DYNO SHEET -
HORSEPOWER GRAPH |
|
|
|
|
| PIRANIO'S ANTIQUE
AUTOMOTIVE |
|

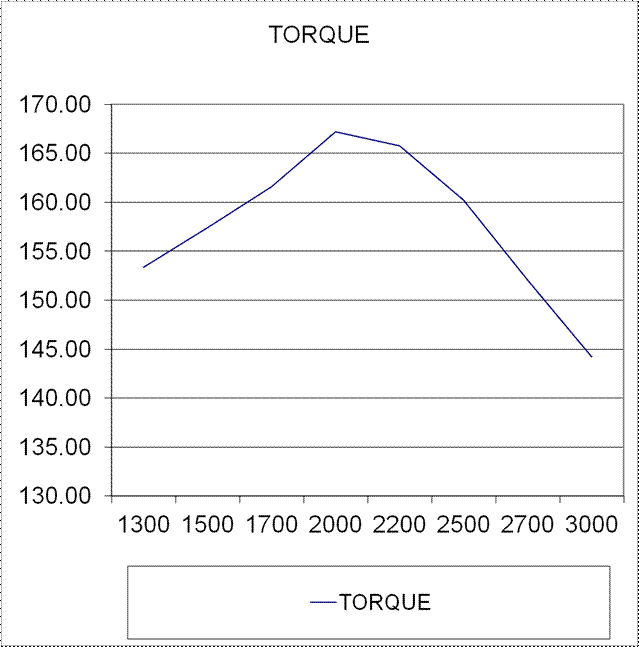

| DYNO SHEET - TORQUE
GRAPH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
