PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		1
CUSTOMER:		SHOP					DATE:		11/2/2008
ADDRESS:							PHONE:
ENGINE:	STREET ROD MODEL A FORD						TIME:	11:30 AM
ENGINE NUMBER:		A-27684
BAROMETRIC PRESSURE:			30.14	ELEVATION:		590	TEMPERATURE:		84
STATION PRESSURE:			29.5063			CORRECTION FACTOR:			1.070351
HUMIDITY:		50
ENGINE	TEMPERATURE:		180		FUEL:	10% ETHANOL REGULAR GASOLINE
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		14.5		165.80		41.04		43.93
1500		15.1		174.55		49.85		53.36
1700		15.3		177.56		57.47		61.52
2000		15.4		179.08		68.19		72.99
2200		15.3		177.56		74.38		79.61
2500		14.9		171.59		81.68		87.42
2700		14.3		162.98		83.78		89.68
3000		13.2		148.11		84.60		90.55
3200		12.8		142.96		87.11		93.23
3500		12.4		137.93		91.92		98.39
				0.00		0.00		0.00
DESCRIPTION:		STREET ROD ENGINE COMBINATION
WEBER CARBURETOR & MANIFOLD, RE JETTED
RED'S 4 INTO 1 TUBULAR HEADER, DYNO MUFFLER
FS ELECTRONIC DISTRIBUTOR, 26 DEGREES TOTAL TIMING
CRANE, F-220/320-12 CAMSHAFT
LION 6.3-1 COMPRESSION HEAD, CHAMBERS MODIFIED @ P.A.A., B CUT INTAKE, A CUT EXHAUST
1.700" INTAKE VALVES, PORTED INTAKE PORTS
CHAMPION N11YC SPARK PLUG, .O32" GAP
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE

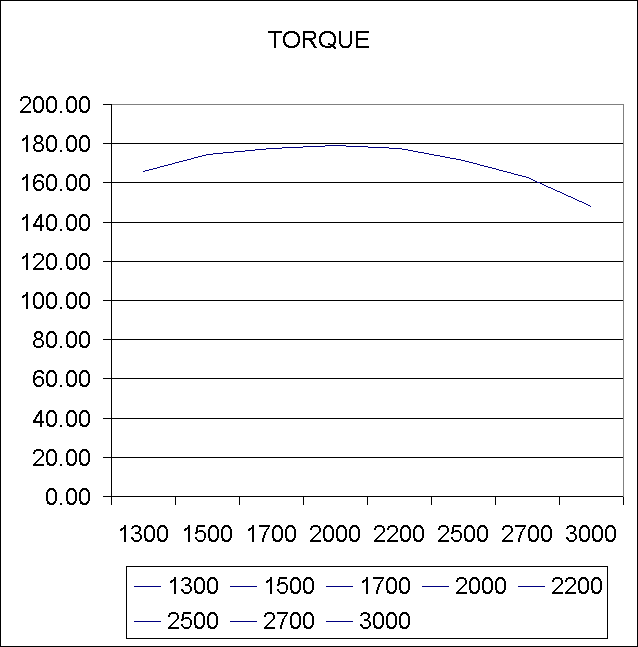

DYNO SHEET - TORQUE GRAPH
