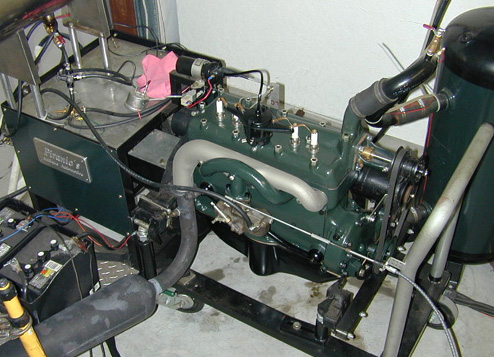

THIS IS OUR STOCK ENGINE REBUILD. THIS ENGINE HAS ALL OF THE ORIGINAL DESIGN COMPONENTS.










This engine produces 41 horsepower, just as Henry advertised!




STOCK ENGINE LABOR ESTIMATE
DESCRIPTION
TEAR DOWN & VISUALLY INSPECT ENGINE
VAT ENGINE COMPONENTS
VAT HEAD & MAGNAFLUX
VAT BLOCK & MAGNAFLUX
PRESSURE TEST BLOCK
PRESSURE TEST HEAD
DECK BLOCK
BORE BLOCK TO NEXT OVERSIZE
HONE CYLINDERS TO FIT PISTONS
GRIND CRANKSHAFT  & FACE REAR FLANGE
PENETRANT DYE CHECK  CRANKSHAFT
CUT BLOCK FOR ADJUSTABLE LIFTERS
INSTALL HARD SEATS
INSTALL ONE PIECE VALVE GUIDES
HONE VALVE GUIDES
VALVE JOB
LAP VALVES
REBUILD OIL PUMP
BORE BLOCK & INSTALL CAM BEARINGS
BABBIT & MACHINE RODS TO FIT CRANKSHAFT
BABBIT MAINS & ALIGN BORE
R&R WRIST PIN BUSHINGS
FORM & HONE WRIST PIN BUSHINGS
CHECK RODS FOR STRAIGHT
STRAIGHTEN 1 ROD
SHORTEN CAMSHAFT FOR REAR PLUG CLEARANCE
ENGINE BLUEPRINTING & ASSEMBLY LABOR
SURFACE HEAD
SURFACE H20 OUTLET ON HEAD
BACK FLUSH WATER JACKET
POLISH CRANKSHAFT
MACHINE REAR MAIN CAP FOR 3/8" DRAIN SYSTEM
PRIME & PAINT ENGINE
SURFACE MANIFOLD SIDE OF BLOCK
SURFACE MANIFOLDS
STAINLESS STEEL COAT EXHAUST MANIFOLD


TOTAL  $4,374.04
STOCK ENGINE PARTS ESTIMATE
QUANITY PART # DESCRIPTION UNIT  PRICE TOTAL
1 A-6505-A-SS 1 PIECE GUIDE & VALVE CONVERSION   $ 132.00  $ 132.00
1 A-6502B ADJUSTABLE TAPPET SET  $   99.99  $   99.99
1 A-6513 VALVE SPRING SET  $    6.42  $    6.42
1 A-6008-M COMPLETE GASKET SET  $   51.81  $   51.81
1 A-6551 OIL PUMP DRIVE GEAR  $   24.60  $   24.60
1 A-6600 OIL PUMP REBUILD KIT  $   66.70  $   66.70
1 A-6340-B MAIN SHIM KIT  $    12.80  $    12.80
1 A-6275 CAM THRUST PLUNGER & SPRING  $    3.95  $    3.95
1 A-6306 CRANK GEAR  $   13.75  $   13.75
1 A-6256AF CAM GEAR STD  $   51.50  $   51.50
4 A-6207 WRIST PIN BUSHING  $    1.85  $    7.40
1 A-6250-B  CAMSHAFT  $   84.50  $   84.50
1 A-6220B ROD SHIM SET  $    6.90  $    6.90
1 A-6312-A CRANKSHAFT PULLEY 1 PIECE  $   23.95  $   23.95
1 A-6108 PISTON SET  $   106.00  $   106.00
1 A-6149 RING SET  $   38.45  $   38.45
8 A-6507 HARD SEATS  $    3.80  $   30.40
1 A-6623 OIL PUMP SCREEN  $    3.25  $    3.25
1 A-6620 OIL PUMP SPRING  $    1.15  $    1.15
1 A-6570 OIL PUMP DRIVE RET. SPRING  $    1.50  $    1.50
1 A-6328-B 3/8 OIL RETURN TUBE  $    2.45  $    2.45
1 A-6000S ANTIQUE FORD GREEN PAINT  $    7.45  $    7.45
1 A-6002-S RUSTOLEUM PRIMER  $    5.50  $    5.50
1 A-6001-S BLACK ENGINE PAINT  $    5.50  $    5.50
1 A-6066-A HEAD STUD SET  $   12.30  $   12.30
1 A-6080-A HEAD STUD NUT SET  $    3.55  $    3.55
1 A-711-S CAM BEARING SET  $   71.56  $   71.56
5 T-50W TORCO 50 WT RACING OIL  $    11.67  $   58.35
 $        -
 SUB TOTAL   $ 933.68
 TAX   $   58.36
 TOTAL   $ 992.04

For current pricing of this engine combination or to order, call or e-mail us at
PIRANIO'S ANTIQUE AUTOMOTIVE
940-382-2742
