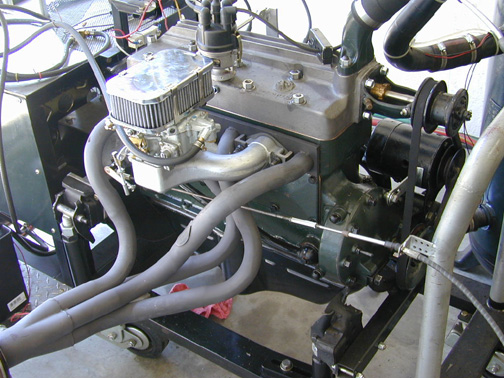

THIS IS OUR STREET ROD ENGINE. THIS ENGINE HAS A COUNTERWEIGHTED CRANKSHAFT, INSERT ROD & MAIN BEARINGS, BALANCED ROTATING ASSEMBLY, PRESSURE OILED CENTER MAIN, STREET ROD CAMSHAFT, LION 6.3-1 COMPRESSION CYLINDER HEAD, 1.700" INTAKE VALVES, PORTED INTAKE PORTS, WEBER CARBURETOR & INTAKE MANIFOLD, FS IGNITIONS ELECTRONIC DISTRIBUTOR, RED'S 4 INTO 1 TUBULAR HEADER & SMITTY'S MUFFLER.










This engine produces about 98 horsepower.It will allow you to cruse above 60 mph with 3.54 gears or an overdrive. This engine combination has a good idle & runs smooth.




STREET ROD ENGINE LABOR
DESCRIPTION
TEAR DOWN & VISUALLY INSPECT ENGINE
VAT ENGINE COMPONENTS
VAT BLOCK & MAGNAFLUX
PRESSURE TEST BLOCK
HEAT & REMOVE HEAD STUDS
DECK BLOCK
BORE BLOCK TO NEXT OVERSIZE
HONE CYLINDERS TO FIT PISTONS WITH TORQUE PLATE
GRIND CRANKSHAFT
MACHINE CRANKSHAFT FOR BURTZ REAR MAIN SEAL
PENETRANT DYE CHECK  CRANKSHAFT
CUT BLOCK FOR ADJUSTABLE LIFTERS
INSTALL 4 1.750" INTAKE HARD SEATS
INSTALL EXHAUST HARD SEATS
PORT INTAKE PORTS IN BLOCK
INSTALL ONE PIECE VALVE GUIDES
REAM VALVE GUIDES
3 ANGLE VALVE JOB
LAP VALVES
REBUILD OIL PUMP
BORE BLOCK & INSTALL CAM BEARINGS
ALIGN BORE MAINS FOR INSERT BEARINGS
MACHINE BEARING TANG SLOTS IN MAIN BORES
MACHINE REAR MAIN FOR BRONZE THRUST BEARINGS
MACHINE BRONZE THRUST BEARINGS FOR PROPER THICKNESS
HONE WRIST PIN BUSHINGS
SHORTEN CAMSHAFT FOR REAR PLUG CLEARANCE
ENGINE BLUEPRINTING & ASSEMBLY LABOR
BACK FLUSH WATER JACKET
POLISH CRANKSHAFT
MACHINE REAR MAIN CAP FOR 3/8" DRAIN SYSTEM
PRIME & PAINT ENGINE
COUNTERWEIGHT CRANKSHAFT
BALANCE ASSEMBLY
TEFLON SKIRT & CERAMIC COAT TOPS OF PISTONS
UPS PISTONS TO & FROM HOUSTON
MACHINE BLOCK TO OIL CENTER MAIN
SURFACE MANIFOLD SIDE OF BLOCK
MACHINE FLYWHEEL FOR V-8 CLUTCH
INSTALL FLYWHEEL RING GEAR
STREET ROD ENGINE PARTS
QUANITY PART # DESCRIPTION
1 A-6505-SS-HP 1.700 HI PERF.VALVE CONVERSION
1 A-6502B ADJUSTABLE TAPPET SET
1 A-6513 VALVE SPRING SET
1 A-6008-M COMPLETE GASKET SET
1 A-6551 OIL PUMP DRIVE GEAR
1 A-6600 OIL PUMP REBUILD KIT
1 A-6600 INSERT MAIN BEARING SET
1 A-6600 BRONZE MAIN THRUST WASHER SET
1 A-6275 CAM THRUST PLUNGER & SPRING
1 A-6306-B BILLIT STEEL CRANK GEAR
1 A-6256-B BRONZE CAM GEAR STD
1 A-6250-ST SUPER TOURING CAMSHAFT
1 A-6220B INSERT ROD & BEARING SET
1 A-6108 PISTON SET
1 A-6312-A CRANKSHAFT PULLEY 1 PIECE
1 A-6149 RING SET
4 A-6507 HARD SEAT
4 A-6509-S 1.750" INTAKE HARD SEAT
1 A-6623 OIL PUMP SCREEN
1 A-6620 OIL PUMP SPRING
1 A-6570 OIL PUMP DRIVE RET. SPRING
1 A-6328-B 3/8 OIL RETURN TUBE
1 A-6000S ANTIQUE FORD GREEN PAINT
1 A-6002-S RUSTOLEUM PRIMER
1 A-6001-S BLACK ENGINE PAINT
1 A-6066-B AIRCRAFT QUALITY HEAD STUD SET
1 A-6080-B GRADE 8 HEAD NUT SET
1 A-711-S CAM BEARING SET
1 A-WHD68X4 1/8 PIPE TO 1/4 TUBE FITTING
1 A-WHD69X4 1/8 PIPE TO 1/4 TUBE 90 DEG FITTING
1 A-6050-L LION 6.2-1 HIGH COMPRESSION HEAD
1 A-9510-W WEBER CARBURETOR & MANIFOLD KIT
1 A-9450 RED'S 4 INTO 1 TUBULAR HEADER
1 A-8505-X WATER PUMP MOUNTING STUD SET
1 A-7563-V V-8 PRESSURE PLATE
1 A-7563-VB V-8 PRESSURE PLATE BOLT SET
1 A-6384 FLYWHEEL RING GEAR
1 A-7550-A CLUTCH DISK
1 A-7600-L FLYWHEEL PILOT BEARING
5 T-50W TORCO 50 WT RACING OIL
1 A-12104-6 FS ELECTRONIC DISTRIBUTOR
1 CUSTOM PLUG WIRE SET
1 A-12104-6 TIMING SCALE
1 A-12104-6 BURTZ REAR MAIN SEAL
           -
 TOTAL   $9656.34

For current pricing of this engine combination or to order, call or e-mail us at
PIRANIO'S ANTIQUE AUTOMOTIVE
940-382-2742
