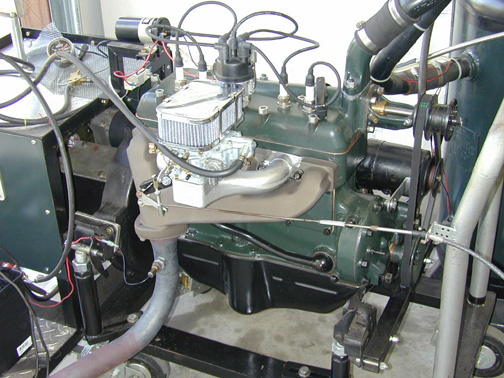

THIS IS OUR SUPER TOURING ENGINE. THIS ENGINE HAS A COUNTERWEIGHTED CRANKSHAFT, BALANCED ROTATING ASSEMBLY, PRESSURE OILED CENTER MAIN, SUPER TOURING CAMSHAFT, SNYDER 5.3-1 COMPRESSION CYLINDER HEAD, 1.700" INTAKE VALVES, PORTED INTAKE PORTS, WEBER CARBURETOR & INTAKE MANIFOLD, FS IGNITIONS ELECTRONIC DISTRIBUTOR, CAST IRON EXHAUST HEADER & SMITTY'S MUFFLER.










This engine produces about 79 horsepower.It will allow you to cruse above 55 mph with 3.54 gears or an overdrive & delivers very good gas milage. This engine combination has a good idle & runs smooth.




SUPER TOURING ENGINE LABOR ESTIMATE
DESCRIPTION
TEAR DOWN & VISUALLY INSPECT ENGINE
VAT ENGINE COMPONENTS
MAGNAFLUX  HEAD
VAT BLOCK & MAGNAFLUX
PRESSURE TEST BLOCK
PRESSURE TEST HEAD
DECK BLOCK
BORE BLOCK TO NEXT OVERSIZE
HONE CYLINDERS TO FIT PISTONS
GRIND CRANKSHAFT
PENETRANT DYE CHECK  CRANKSHAFT
CUT BLOCK FOR ADJUSTABLE LIFTERS
INSTALL 4 1.750" INTAKE HARD SEATS
INSTALL EXHAUST HARD SEATS
PORT INTAKE PORTS IN BLOCK
INSTALL ONE PIECE VALVE GUIDES
HONE VALVE GUIDES
3 ANGLE VALVE JOB
LAP VALVES
REBUILD OIL PUMP
BORE BLOCK & INSTALL CAM BEARINGS
BABBIT & MACHINE RODS TO FIT CRANKSHAFT
BABBIT MAINS & ALIGN BORE
R&R WRIST PIN BUSHINGS
FORM & HONE WRIST PIN BUSHINGS
CHECK RODS FOR STRAIGHT
STRAIGHTEN 1 ROD
SHORTEN CAMSHAFT FOR REAR PLUG CLEARANCE
ENGINE BLUEPRINTING & ASSEMBLY LABOR
BACK FLUSH WATER JACKET
POLISH CRANKSHAFT
MACHINE REAR MAIN CAP FOR 3/8" DRAIN SYSTEM
PRIME & PAINT ENGINE
COUNTERWEIGHT CRANKSHAFT
BALANCE ASSEMBLY
TEFLON SKIRT & CERAMIC COAT TOPS OF PISTONS
UPS PISTONS TO & FROM HOUSTON
MACHINE BLOCK TO OIL CENTER MAIN
SURFACE MANIFOLD SIDE OF BLOCK
MACHINE FLYWHEEL FOR V-8 CLUTCH
INSTALL FLYWHEEL RING GEAR
SUPER TOURING ENGINE PARTS
QUANITY PART # DESCRIPTION
1 A-6505-SS-HP 1.700 HI PERF.VALVE CONVERSION
1 A-6502B ADJUSTABLE TAPPET SET
1 A-6513 VALVE SPRING SET
1 A-6008-M COMPLETE GASKET SET
1 A-6551 OIL PUMP DRIVE GEAR
1 A-6600 OIL PUMP REBUILD KIT
1 A-6340-B MAIN SHIM KIT
1 A-6275 CAM THRUST PLUNGER & SPRING
1 A-6306 CRANK GEAR
1 A-6256AF CAM GEAR STD
4 A-6207 WRIST PIN BUSHING
1 A-6250-ST SUPER TOURING CAMSHAFT
1 A-6220B ROD SHIM SET
1 A-6108 PISTON SET
1 A-6312-A CRANKSHAFT PULLEY 1 PIECE
1 A-6149 RING SET
4 A-6507 HARD SEAT
4 A-6509-S 1.750" INTAKE HARD SEAT
1 A-6623 OIL PUMP SCREEN
1 A-6620 OIL PUMP SPRING
1 A-6570 OIL PUMP DRIVE RET. SPRING
1 A-6328-B 3/8 OIL RETURN TUBE
1 A-6000S ANTIQUE FORD GREEN PAINT
1 A-6002-S RUSTOLEUM PRIMER
1 A-6001-S BLACK ENGINE PAINT
1 A-6066-B AIRCRAFT QUALITY HEAD STUD SET
1 A-6080-B GRADE 8 HEAD NUT SET
1 A-711-S CAM BEARING SET
1 A-WHD68X4 1/8 PIPE TO 1/4 TUBE FITTING
1 A-WHD69X4 1/8 PIPE TO 1/4 TUBE 90 DEG FITTING
1 A-6050-S SNYDER 5.7-1 COMPRESSION HEAD
1 A-9510-W WEBER CARBURETOR & MANIFOLD KIT
1 A-9430 CAST IRON EXHAUST HEADER KIT
1 A-8505-X WATER PUMP MOUNTING STUD SET
1 A-7563-V V-8 PRESSURE PLATE
1 A-7563-VB V-8 PRESSURE PLATE BOLT SET
1 A-6384 FLYWHEEL RING GEAR
1 A-7550-A CLUTCH DISK
1 A-7600-L FLYWHEEL PILOT BEARING
5 T-50W TORCO 50 WT RACING OIL
1 A-12104-6 FS ELECTRONIC DISTRIBUTOR
1 CUSTOM PLUG WIRE SET
           -
 TOTAL

For current pricing of this engine combination or to order, call or e-mail us at
PIRANIO'S ANTIQUE AUTOMOTIVE
940-382-2742
