PAGE 30

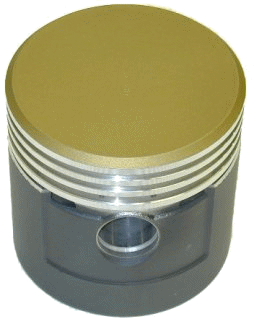

ALL PISTONS ARE AVAILABLE WITH TEFLON COATED SKIRTS & CERAMIC COATED TOPS

COATING PRICE = $187.20 PER SET OF 4

DESCRIPTION PART NUMBER PRICE

PISTON & RING SETS
A-PISTONS STD 4 SET A-6108-STD $106.00
A-PISTONS.020 4 SET A-6108-020 $106.00
A-PISTONS.030 4 SET A-6108-030 $106.00
A-PISTONS.040 4 SET A-6108-040 $106.00
A-PISTONS .060 4 SET A-6108-060 $106.00
A-PISTONS.080 4 SET A-6108-080 $106.00
A-PISTONS.100 4 SET A-6108-100 $106.00
A-PISTONS.125 4 SET A-6108-125 $106.00
A-PISTONS. ARIAS CUSTOM FORGED SILICONE ALUMINUM MODERN DESIGN PISTONS, SET OF 4.
THESE PISTONS ARE CUSTOM MANUFACTURED FOR US AT PIRANIOS ANTIQUE AUTOMOTIVE TO OUR DESIGN SPECIFICATIONS. THESE PISTONS ARE FORGED FROM HIGH SILICONE ALUMINUM FOR MAXIMUM STRENGTH & MINIMUM HEAT EXPANSION.
THESE PISTONS HAVE THE CORRECT PIN LOCATION FOR STOCK DECK HEIGHT IN THE BLOCK, USING THE STOCK 1" PIN DIAMETER & DOUBLE PIN RETAINING LOCKS. THEY ALSO INCORPERATE MODERN 5/64, 5/64, 3/16 RING GROVES FOR USE WITH MODERN DESIGN PISTON RINGS.
THESE PISTONS ARE ONLY AVAILABLE IN STD BORE & YOUR BLOCK MUST BE SLEEVED WITH MODERN NICKLE IRON SLEEVES TO PROVIDE THE CORRECT CYLINDER WALL MATERIAL TO BE COMPATIBLE WITH MODERN MOLY STYLE RING SETS.
USE WITH OUR MODERN RING SET # A-6149-M-STD
A-6108-M-STD $544.09
A-PISTON RINGS, HASTINGS -STD A-6149-STD $ 42.00
A-PISTON RINGS-.020 A-6149-20 $ 42.00
A-PISTON RINGS-.030 A-6149-030 $ 42.00
A-PISTON RINGS-.040 A-6149-040 $ 42.00
A-PISTON RINGS- HASTINGS .060 A-6149-060 $ 42.00
A-PISTON RINGS- HASTINGS .080 A-6149-080 $ 42.00
A-PISTON RINGS-.100 A-6149-100 $ 42.00
A-PISTON RINGS-.125 A-6149-125 $ 42.00
A-PISTON RINGS- MODERN MOLY DESIGN
THIS IS THE CORRECT RING SET TO USE WITH OUR ARIAS CUSTOM PISTONS # A-6108-M-STD.
AVAILABLE IN STD ONLY.
A-6149-M-STD $ 51.95
