PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		2
CUSTOMER:		DENNIS PIRANIO					DATE:	2/7/2007
ADDRESS:							PHONE:
ENGINE:	MODEL A FORD HP						TIME:	3:00 PM
ENGINE NUMBER:		A 27684
BAROMETRIC PRESSURE:			30	ELEVATION:		690	TEMPERATURE:		80
STATION PRESSURE:			29.2606			CORRECTION FACTOR:			1.074078
HUMIDITY:		48
ENGINE	TEMPERATURE:		180		FUEL:	PREMIUM 10% ETHANOL GASOLINE

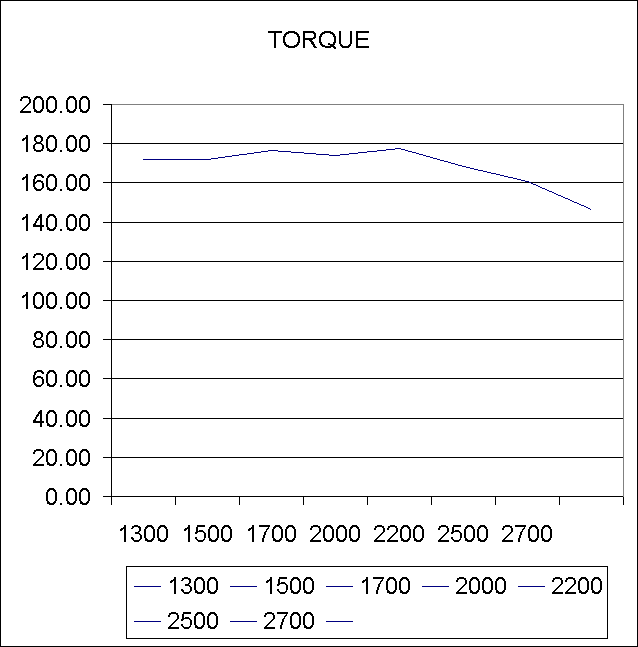

RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		14.8		171.91		42.55		45.70
1500		14.8		171.91		49.10		52.73
1700		15.2		176.36		57.09		61.31
2000		15		174.13		66.31		71.22
2200		15.3		177.48		74.34		79.85
2500		14.5		168.57		80.24		86.18
2700		13.8		160.77		82.65		88.77
2900		12.5		146.29		80.78		86.76
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:		BURNS MANIFOLD, STROMBERG CARBS DONOVAN 7.3-1 HEAD, 26 DEGREES
		ARIES MUFFLER, 1.700" INTAKE VALVES, PORTED BLOCK
		CRANE F 220/320-12 CAMSHAFT
PIRANIO'S ANTIQUE AUTOMOTIVE

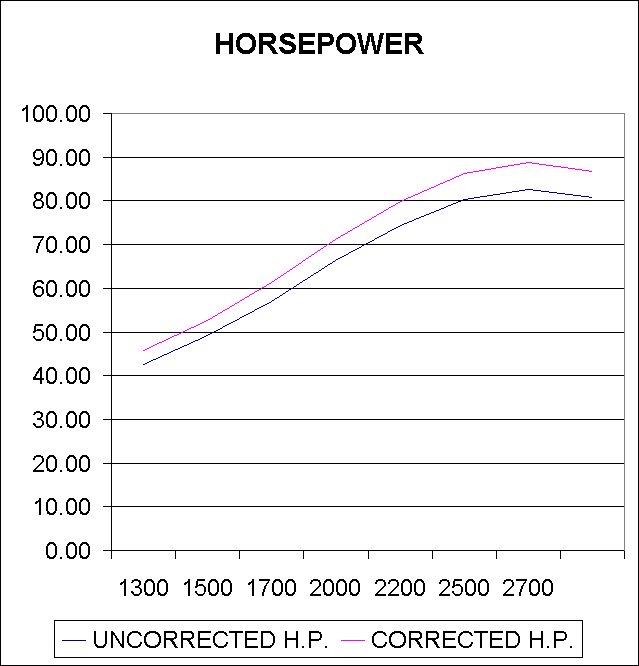

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
