PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		1
CUSTOMER:		FS IGNITIONS					DATE:	7/24/2008
ADDRESS:							PHONE:
ENGINE:	STOCK DYNO #						TIME:	10:00 AM
ENGINE NUMBER:		A 2522255
BAROMETRIC PRESSURE:			30	ELEVATION:		590	TEMPERATURE:		87
STATION PRESSURE:			29.3663			CORRECTION FACTOR:			1.081276
HUMIDITY:		54
ENGINE	TEMPERATURE:		180		FUEL:	REGULAR 10% ETHANOL GASOLINE
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		13		145.52		36.02		38.95
1500		12.9		144.24		41.20		44.54
1700		12.6		140.43		45.46		49.15
2000		11.5		126.99		48.36		52.29
2200		10.8		118.78		49.76		53.80
2500		8.9		97.44		46.38		50.15
2700				0.00		0.00		0.00
3000				0.00		0.00		0.00
3500				0.00		0.00		0.00
4000				0.00		0.00		0.00
DESCRIPTION:		STOCK DYNO ENGINE, ARIES MUFFLER, SNYDER 5.3-1 COMPRESSIOIN HEAD
29 DEGREES TIMING			13-1 A.F.R.		ZENITH CARBURETOR
PIRANIO'S ANTIQUE AUTOMOTIVE

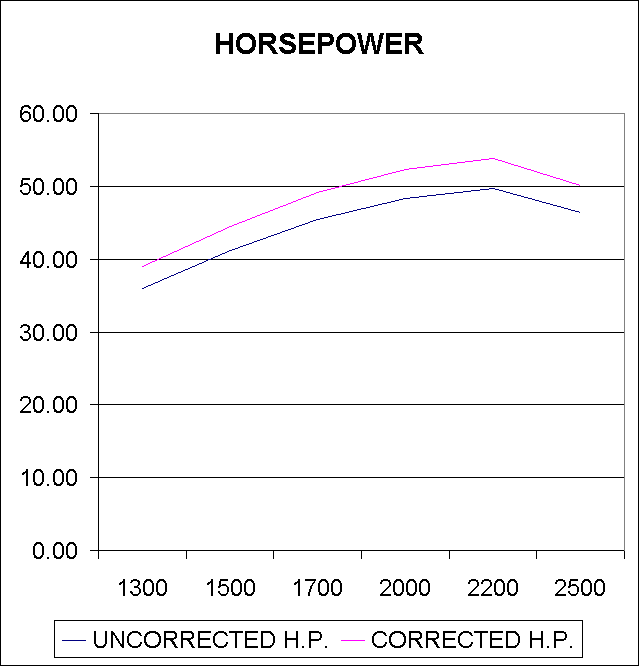

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE

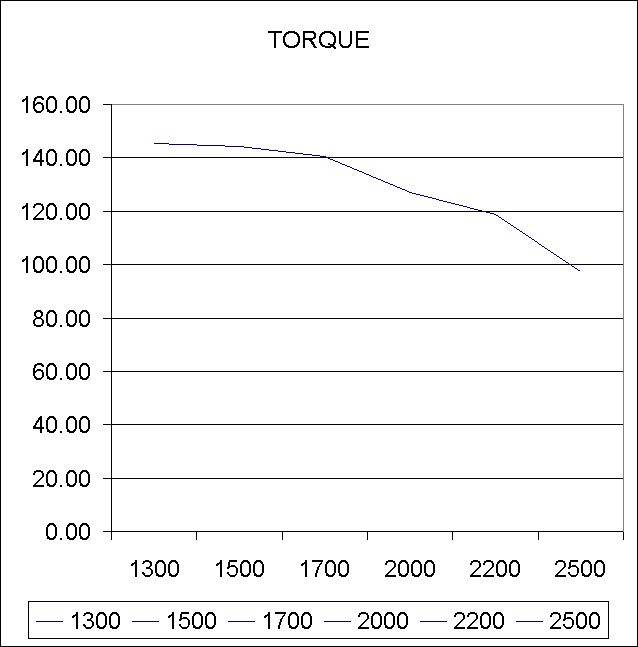

DYNO SHEET - TORQUE GRAPH
