| PIRANIO'S ANTIQUE AUTOMOTIVE |
|
|
|
|
|
|
|
|
|
|
| DYNO SHEET |
|
|
|
|
|
|
|
RUN NUMBER: |
2 |
| CUSTOMER: |
DMAFC |
|
|
|
|
DATE: |
|
12/20/2007 |
| ADDRESS: |
|
|
|
|
|
PHONE: |
|
|
|
|
|
|
|
|
|
|
|
|
| ENGINE: |
MODEL A FORD RAFFEL ENGINE |
|
|
TIME: |
2:35 PM |
|
|
|
|
|
|
|
|
|
|
|
| ENGINE NUMBER: |
A2417989 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| BAROMETRIC
PRESSURE: |
29.84 |
ELEVATION: |
590 |
TEMPERATURE: |
73 |
| STATION
PRESSURE: |
29.2063 |
|
|
CORRECTION FACTOR: |
1.0664015 |
| HUMIDITY: |
44 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ENGINE |
TEMPERATURE: |
180 |
|
FUEL: |
REGULAR GASOLINE 10% ETHANOL |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| RPM |
|
GAUGE |
|
TORQUE |
|
HORSEPOWER |
CORRECTED |
| |
|
READING |
|
|
|
|
|
HORSEPOWER |
| |
|
|
|
|
|
|
|
|
|
| 1100 |
|
12 |
|
140.72 |
|
29.47 |
|
31.43 |
|
| 1300 |
|
11.9 |
|
139.61 |
|
34.56 |
|
36.85 |
|
| 1500 |
|
11.9 |
|
139.61 |
|
39.87 |
|
42.52 |
|
| 1700 |
|
11.4 |
|
134.04 |
|
43.39 |
|
46.27 |
|
| 2000 |
|
10.4 |
|
122.90 |
|
46.80 |
|
49.91 |
|
| 2200 |
|
9.7 |
|
115.10 |
|
48.22 |
|
51.42 |
|
| 2500 |
|
8.6 |
|
102.85 |
|
48.96 |
|
52.21 |
|
| 2700 |
|
7.1 |
|
86.15 |
|
44.29 |
|
47.23 |
|
|
|
|
|
|
|
|
|
|
|
| DESCRIPTION: |
TOURING SHORT BLOCK, "B" CAMSHAFT
GRIND, STOCK COMPRESSION |
|
|
HEAD. ARIES MUFFLER, 29.5 DEGREES TIMING, STOCK
INTAKE MANIFOLD |
|
|
ZENITH CARBURETOR |
|
|
|
|
|
|
|
ENGINE RUN IN 3 HOURS ON DYNO, THEN TESTED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PIRANIO'S
ANTIQUE AUTOMOTIVE |
|
|
|
|
|
|
|
|
|
|

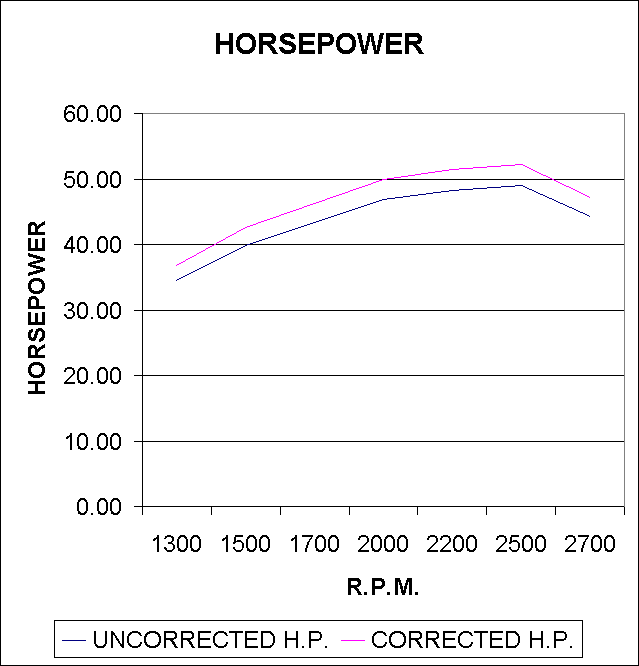

| DYNO SHEET -
HORSEPOWER GRAPH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PIRANIO'S
ANTIQUE AUTOMOTIVE |
|
|
|
|
|
|
|
|
|
|
| DYNO SHEET -
TORQUE GRAPH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
