PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		9
CUSTOMER:		SHOP					DATE:	3/4/2006
ADDRESS:							PHONE:
ENGINE:	DYNO STOCK						TIME:	4:35 PM
BAROMETRIC PRESSURE:			30.17	ELEVATION:		690	TEMPERATURE:		53
STATION PRESSURE:			29.4306			CORRECTION FACTOR:			1.031908
HUMIDITY:		34
ENGINE	TEMPERATURE:		180		FUEL:	GASOLINE, REGULAR

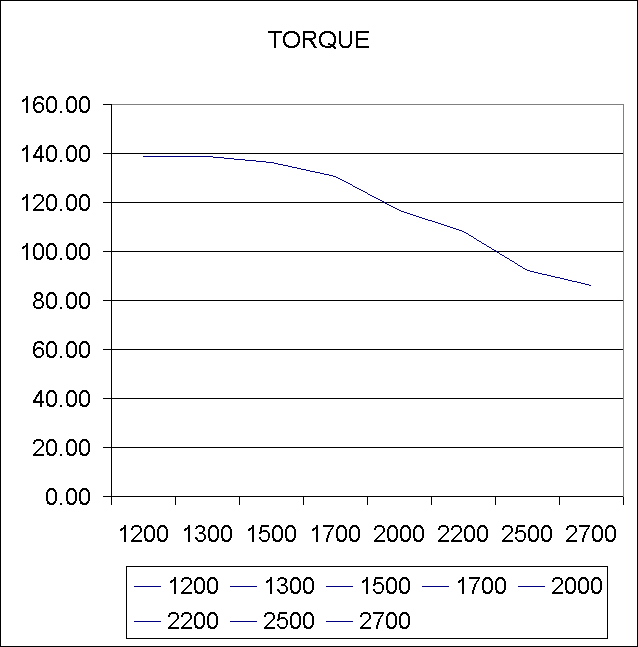

RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1200		22.6		138.88		31.73		32.74
1300		22.6		138.88		34.38		35.47
1500		22.1		136.19		38.90		40.14
1700		21.1		130.81		42.34		43.69
2000		18.5		116.82		44.49		45.91
2200		16.9		108.21		45.33		46.77
2500		13.9		92.07		43.83		45.22
2700		12.8		86.15		44.29		45.70
				0.00		0.00		0.00
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:		STOCK ENGINE
"C" HEAD  28 DEGREES TIMING
"A" CARB & MANIFOLD
PIRANIO'S ANTIQUE AUTOMOTIVE

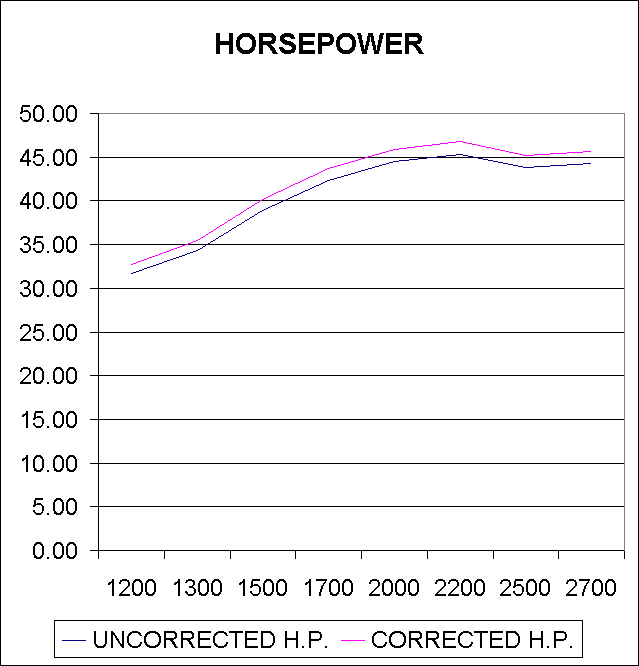

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
