PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		7
CUSTOMER:		SHOP					DATE:	2/16/2006
ADDRESS:							PHONE:
ENGINE:	DYNO STOCK						TIME:	5:30 PM
BAROMETRIC PRESSURE:			29.84	ELEVATION:		690	TEMPERATURE:		79
STATION PRESSURE:			29.1006			CORRECTION FACTOR:			1.083331
HUMIDITY:		54
ENGINE	TEMPERATURE:		180		FUEL:	GASOLINE, REGULAR

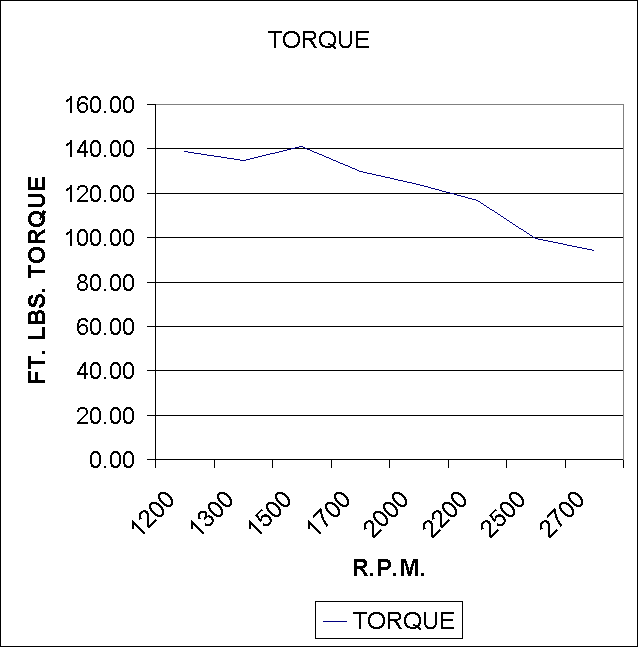

RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1200		22.6		138.88		31.731		34.38
1300		21.8		134.57		33.310		36.09
1500		23		141.03		40.279		43.64
1700		20.9		129.73		41.992		45.49
2000		19.8		123.81		47.149		51.08
2200		18.5		116.82		48.934		53.01
2500		15.3		99.60		47.412		51.36
2700		14.3		94.22		48.439		52.48
				0		0		0
				0		0		0
				0		0		0
DESCRIPTION:
STOCK ENGINE 28 DEGREES TIMING
B HEAD & B CARBURETOR, A MANIFOLD BORED OUT TO B SIZES
5.26 COMPRESSION RATIO
PIRANIO'S ANTIQUE AUTOMOTIVE

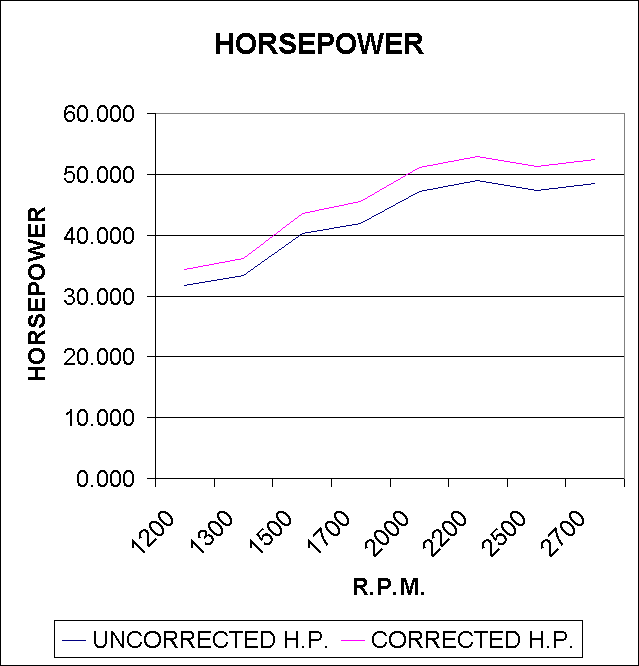

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
