PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		10
CUSTOMER:		DENNIS PIRANIO					DATE:	5/4/2007
ADDRESS:							PHONE:
ENGINE:	MODEL A FORD HP						TIME:	5:00 AM
ENGINE NUMBER:		A 27684
BAROMETRIC PRESSURE:			29.78	ELEVATION:		690	TEMPERATURE:		85
STATION PRESSURE:			29.0406			CORRECTION FACTOR:			1.101591
HUMIDITY:		68
ENGINE	TEMPERATURE:		180		FUEL:	PREMIUM 10% ETHANOL GASOLINE

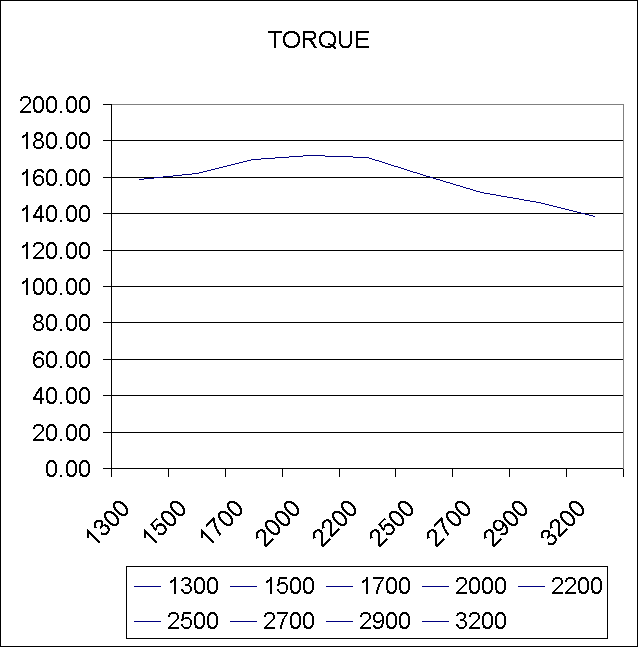

RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		13.6		158.54		39.24		43.23
1500		13.9		161.88		46.23		50.93
1700		14.6		169.68		54.92		60.50
2000		14.8		171.91		65.46		72.11
2200		14.7		170.79		71.54		78.81
2500		13.8		160.77		76.53		84.30
2700		13		151.86		78.07		86.00
2900		12.5		146.29		80.78		88.98
3200		11.8		138.49		84.38		92.96
3500		10.5		124.01		82.64		91.04
DESCRIPTION:		BURNS MANIFOLD, STROMBERG CARBS LOIN 6.5-1 HEAD, 30 DEGREES
		HEADER, 1.700" INTAKE VALVES, PORTED BLOCK
		CRANE F 260/360-12 CAMSHAFT
		DYNO STEEL MUFFLER
		LION HEAD AS SENT
PIRANIO'S ANTIQUE AUTOMOTIVE

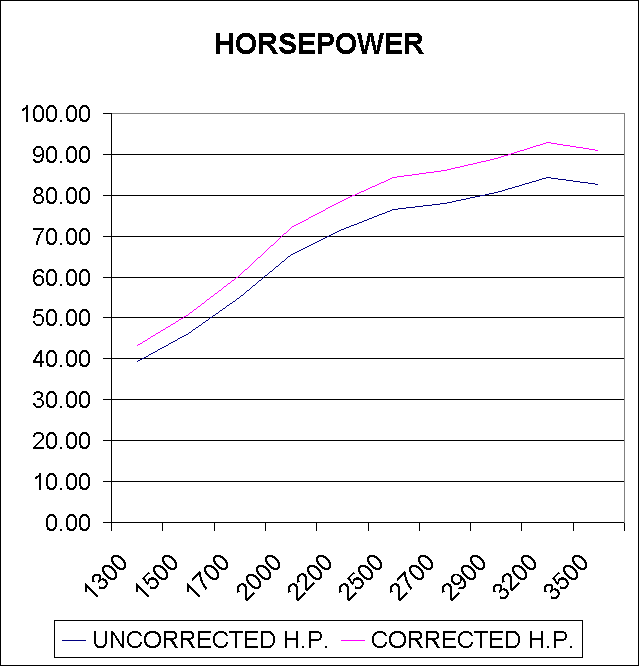

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
