PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		1
CUSTOMER:							DATE:		9/12/2006
ADDRESS:							PHONE:
ENGINE:	MODEL A FORD, TOURING						TIME:	10:30 A.M.
ENGINE NUMBER:		A 4656428
BAROMETRIC PRESSURE:			30.09	ELEVATION:		690	TEMPERATURE:		83
STATION PRESSURE:			29.3506			CORRECTION FACTOR:			1.07936
HUMIDITY:		56
ENGINE	TEMPERATURE:		180		FUEL:	10% ETHANOL GASOLINE
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		22.5		138.34		34.24		36.96
1500		22.8		139.95		39.97		43.14
1700		22.6		138.88		44.95		48.52
2000		21.8		134.57		51.25		55.31
2200		20.5		127.58		53.44		57.68
2500		18.2		115.21		54.84		59.19
2700		17.1		109.29		56.18		60.64
				0.00		0.00		0.00
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:		NEW ENGINE, RUN IN 3 HOURS ON DYNO
P.A.A TOURING ENGINE, WEBER CARBURETOR & INTAKE MANIFOLD. CARBURETOR RE-JETTED
PRIMARY MAIN JET .059"   28 DEGREES TIMING
ARIES MUFFLER
PIRANIO'S ANTIQUE AUTOMOTIVE

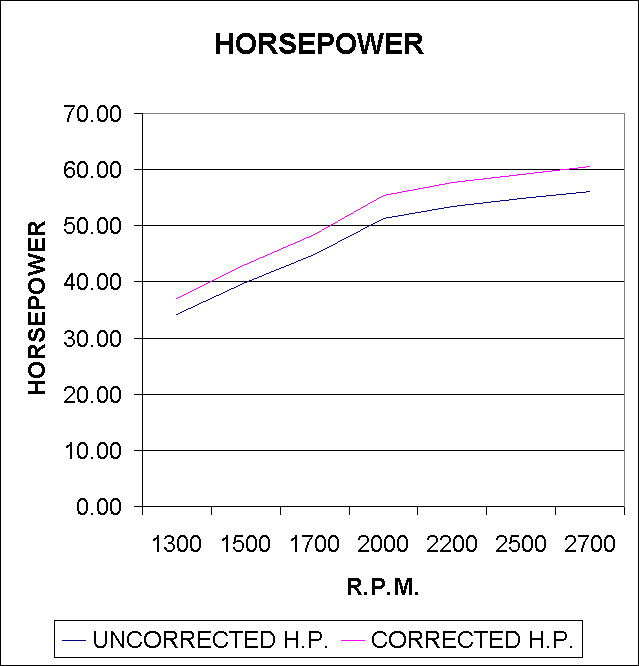

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
