PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
								RUN NUMBER:		1
CUSTOMER:		SHOP						DATE:	6/15/2010
ADDRESS:								PHONE:
ENGINE:		CYCLONE, ROOF 101						TIME:	11:20 AM
ENGINE NUMBER:		4			CU. IN.		210.96
BAROMETRIC PRESSURE:			29.96	ELEVATION:		590	TEMPERATURE:		86
STATION PRESSURE:			29.3263			CORRECTION FACTOR:			1.091042
HUMIDITY:		67
ENGINE	TEMPERATURE:		180		FUEL:	93 OCTANE PREMIUM GAS, 10% ETHANOL
RPM		GAUGE	TORQUE	HORSEPOWER			CORRECTED		VOLUMETRIC
		READING					HORSEPOWER		EFFIECENCY
1300		11.7	129.38		32.02		34.94		71.35
1500		12.0	133.01		37.99		41.45		73.35
1700		12.4	137.93		44.65		48.71		76.06
2000		12.5	139.18		53.00		57.83		76.75
2200		12.3	136.07		57.00		62.19		75.04
2500		11.8	130.58		62.16		67.82		72.01
2700		12.0	133.01		68.38		74.60		73.35
2900		11.4	125.80		69.46		75.79		69.37
3100		11.6	128.18		75.66		82.55		70.68
3300		9.9	108.54		68.20		74.40		59.85
3500		9.0	98.54		65.67		71.65		54.34
DESCRIPTION:		NEW ENGINE, PROTOTYPE ROOF HEAD # 004
	2 NEW STROMBERG 97 CARBURETORS, 45 MAIN JETS, 65 POWERVALVE
	FS ELECTRONIC DISTRIBUTIR, 25 DEGREES TIMING
	CAST IRON HEADER, SMITHY'S MUFFLER

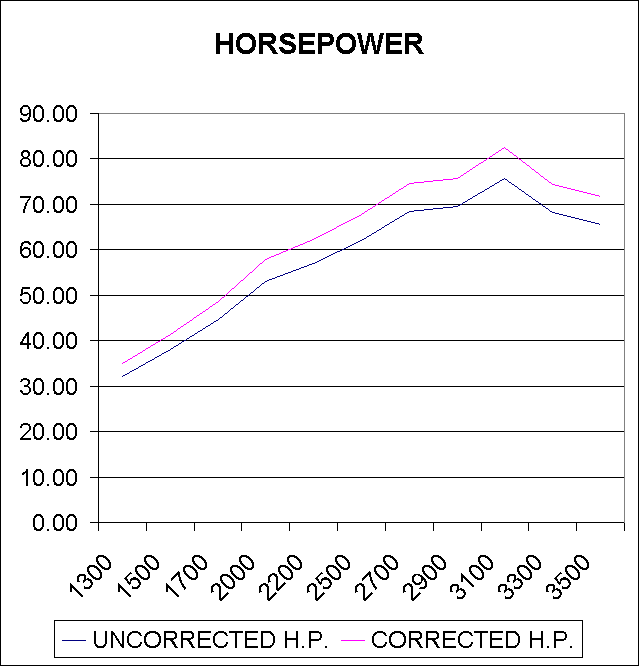

PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH

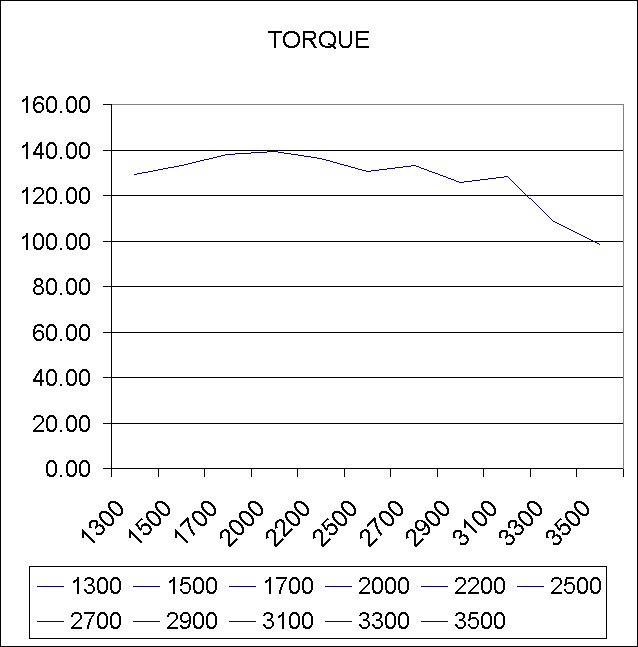

PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - TORQUE GRAPH
