PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
								RUN NUMBER:		2
CUSTOMER:		SHOP						DATE:	6/15/2010
ADDRESS:								PHONE:
ENGINE:		CYCLONE, ROOF 101						TIME:	11:43 AM
ENGINE NUMBER:		4			CU. IN.		210.96
BAROMETRIC PRESSURE:			29.96	ELEVATION:		590	TEMPERATURE:		86
STATION PRESSURE:			29.3263			CORRECTION FACTOR:			1.088906
HUMIDITY:		64
ENGINE	TEMPERATURE:		180		FUEL:	93 OCTANE PREMIUM GAS, 10% ETHANOL
RPM		GAUGE	TORQUE	HORSEPOWER			CORRECTED		VOLUMETRIC
		READING					HORSEPOWER		EFFIECENCY
1300		11.8	130.58		32.32		35.20		71.87
1500		12.5	139.18		39.75		43.28		76.60
1700		13.0	145.52		47.10		51.29		80.09
2000		12.9	144.24		54.93		59.81		79.38
2200		13.1	146.81		61.50		66.97		80.80
2500		13.0	145.52		69.27		75.43		80.09
2700		13.1	146.81		75.47		82.19		80.80
2900		11.9	131.79		72.77		79.24		72.53
3100		11.7	129.38		76.37		83.15		71.21
3300		10.4	114.19		71.75		78.13		62.85
3500		9.0	98.54		65.67		71.51		54.23
DESCRIPTION:		NEW ENGINE, PTOTOTYPE ROOF HEAD # 004
	2 NEW STROMBERG 97 CARBURETORS45 JETS, 65 POWERVALVE
	FS ELECTRONIC DISTRIBUTIR, 28 DEGREES TIMING
	CAST IRON HEADER, SMITHY'S MUFFLER
PIRANIO'S ANTIQUE AUTOMOTIVE

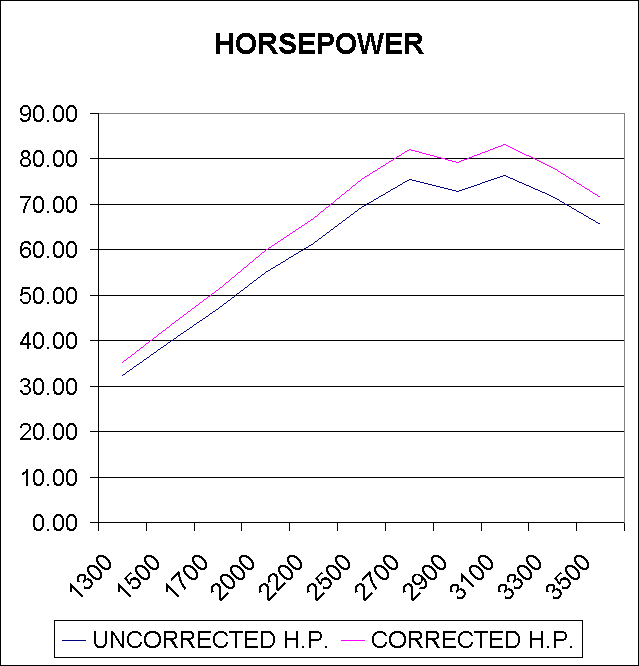

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE

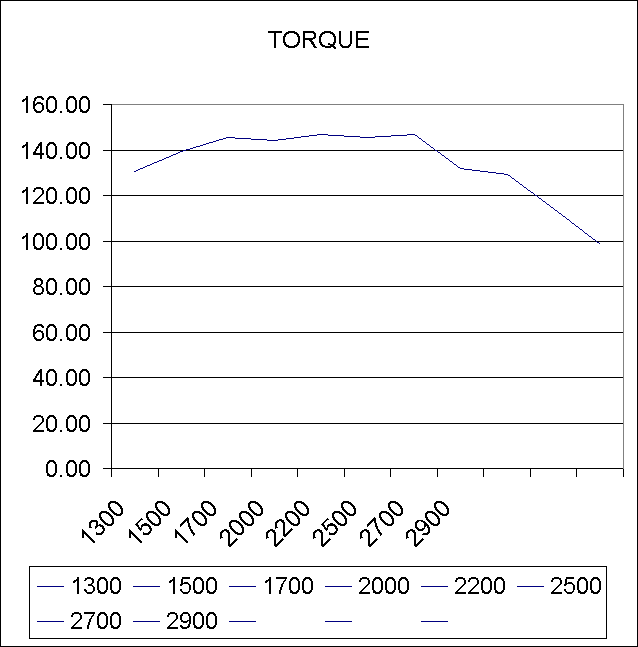

DYNO SHEET - TORQUE GRAPH
