PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
								RUN NUMBER:		5
CUSTOMER:		SHOP						DATE:	6/15/2010
ADDRESS:								PHONE:
ENGINE:		CYCLONE, ROOF 101						TIME:	2:40 PM
ENGINE NUMBER:		4			CU. IN.		210.96
BAROMETRIC PRESSURE:			29.96	ELEVATION:		590	TEMPERATURE:		91
STATION PRESSURE:			29.3263			CORRECTION FACTOR:			1.084539
HUMIDITY:		51
ENGINE	TEMPERATURE:		180		FUEL:	93 OCTANE PREMIUM GAS, 10% ETHANOL
RPM		GAUGE	TORQUE	HORSEPOWER			CORRECTED		VOLUMETRIC
		READING					HORSEPOWER		EFFIECENCY
1300		12.6	140.43		34.76		37.70		76.98
1500		12.5	139.18		39.75		43.11		76.29
1700		12.7	141.69		45.86		49.74		77.67
2000		13.0	145.52		55.42		60.10		79.77
2200		13.5	152.06		63.70		69.08		83.35
2500		14.5	165.80		78.92		85.60		90.89
2700		14.4	164.38		84.51		91.65		90.11
2900		13.4	150.73		83.23		90.27		82.63
3100		12.8	142.96		84.38		91.52		78.37
3300		12.0	133.01		83.57		90.64		72.91
3500		11.8	130.58		87.02		94.38		71.58
DESCRIPTION:		NEW ENGINE, PROTOTYPE ROOF HEAD # 004
	2 NEW STROMBERG 97 CARBURETORS, 45 MAIN JETS, 65 POWERVALVE
	FS ELECTRONIC DISTRIBUTOR, 28 DEGREES TIMING
	RED'S 4 INTO 1 HEADER, DYNO MUFFLER

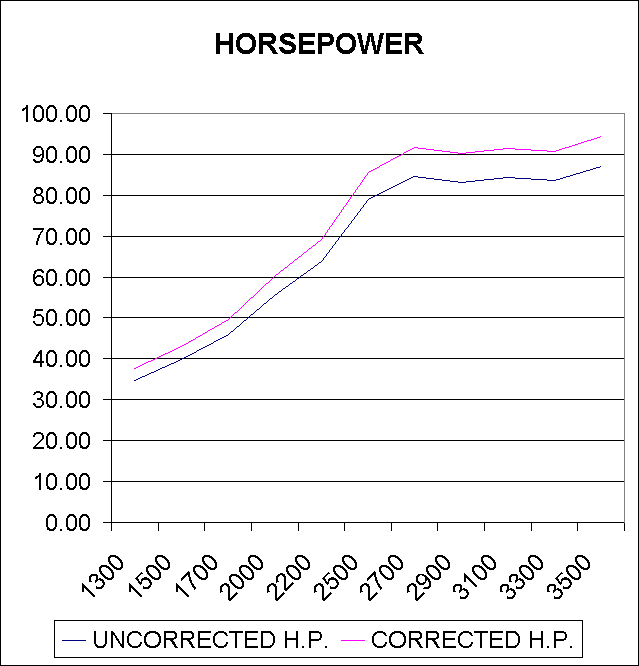

PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH

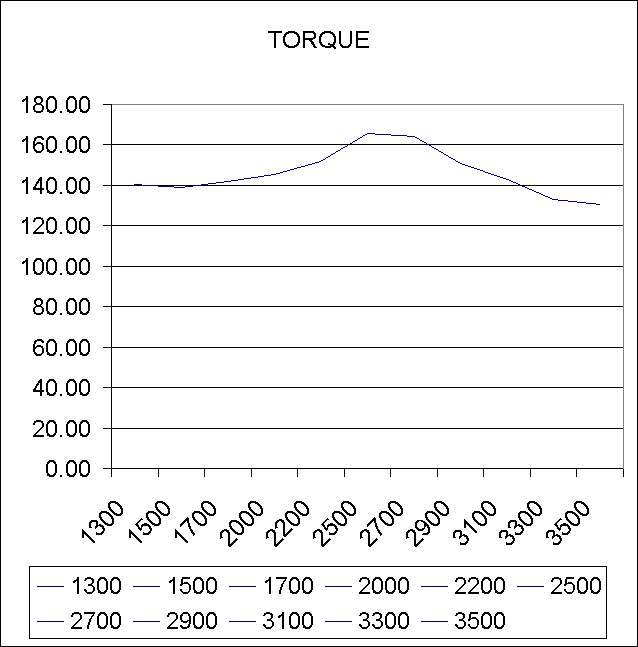

PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - TORQUE GRAPH
