PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		4
CUSTOMER:		DONOVAN ENGINEERING					DATE:	10/7/2011
ADDRESS:							PHONE:
ENGINE:	MODEL A FORD, CRAWFORD HEAD						TIME:	3:24 AM
ENGINE NUMBER:		A1901654			CU. IN.		210.96
BAROMETRIC PRESSURE:			29.96	ELEVATION:		590	TEMPERATURE:		91
STATION PRESSURE:			29.3263			CORRECTION FACTOR:			1.083823
HUMIDITY:		50
ENGINE	TEMPERATURE:		170		FUEL:	PREMIUM GASOLINE, 10% ETHANOL
RPM		GAUGE	TORQUE	HORSEPOWER			CORRECTED		VOLUMETRIC
		READING					HORSEPOWER		EFFIECENCY
1400		16.0	188.49		50.25		54.46		103.26
1500		16.1	190.11		54.30		58.85		104.14
1700		16.1	190.11		61.54		66.70		104.14
2000		16.8	201.87		76.87		83.32		110.58
2200		16.9	203.62		85.29		92.44		111.54
2500		17.0	205.38		97.76		105.96		112.51
2700		16.6	198.43		102.01		110.56		108.70
2900		16.2	191.75		105.88		114.75		105.04
3200		16.0	188.49		114.85		124.48		103.26
3500		14.8	170.12		113.37		122.88		93.19
DESCRIPTION:		SHOP ENGINE, TOURING SHORT BLOCK, "B" CAMSHAFT
	CRAWFORD 1.625" INTAKE PORT HEAD
	2 NEW STROMBERG 97 CARBURETORS, 45 MAIN JETS, 65 POWERVALVE
	FS ELECTRONIC DISTRIBUTOR, 29 DEGREES TIMING
	RED'S 4 - 1 HEADER, 1 1/2' X 26" PRIMARY TUBES. 2.5" DIAMETER COLLECTOR
	NGK B6ES SPARK PLUGS, .032" GAP
	HEAD O-RINGED BETWEEN HALVES
	INTAKE LASH .012" HOT
	AIR FUEL RATIO 12.7-1
PIRANIO'S ANTIQUE AUTOMOTIVE

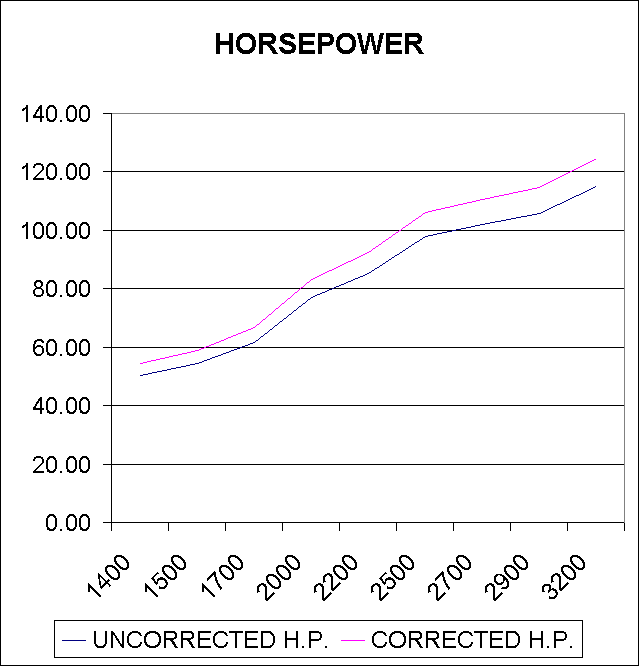

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - TORQUE GRAPH
