PIRANIO'S ANTIQUE AUTOMOTIVE

DYNO SHEET

RUN NUMBER:

CUSTOMER:

PIRANIO'S ANTIQUE AUTOMOTIVE

DATE:

5/2/2020

ADDRESS:

6195 FISHTRAP RD, DENTON, TEXAS

PHONE:

940-382-2742

ENGINE:

MODEL A FORD SUPER TOURING

TIME:

2:00

EQUALIZER DUAL STROMBERG INTAKE MANIFOLD TEST

ENGINE NUMBER:

27684

CU. IN.

211.06

BAROMETRIC PRESSURE:

29.86

ELEVATION:

590

TEMPERATURE:

STATION PRESSURE:

29.2263

CORRECTION FACTOR:

1.094683

HUMIDITY:

ENGINE

TEMPERATURE:

180

FUEL:

10% ETHANOL REGULAR GASOLINE

RPM

GAUGE

TORQUE

HORSEPOWER

CORRECTED

VOLUMETRIC

READING

HORSEPOWER

EFFIECENCY

1300

13.6

153.39

37.97

41.56

84.82899

1500

14.3

162.98

46.55

50.95

90.12958

1700

14.6

167.23

54.13

59.26

92.48372

2000

14.6

167.23

63.68

69.71

92.48372

2200

14.3

162.98

68.27

74.73

90.12958

2500

13.7

154.73

73.65

80.63

85.57074

2700

13.1

146.81

75.47

82.62

81.19126

DESCRIPTION:

PIRANIO'S ANTIQUE AUTOMOTIVE HIGH PERFORMANCE STREET ROD ENGINE

BRUMFIELD 5.8-1 HIGH COMPRESSION HEAD

CRANE F-220/320-12 CAMSHAFT

PORTED BLOCK, 1.700" INTAKE & 1.530" EXHAUST VALVES

DUAL STROMBERG 81 CARBURETORS, 13-1 AFR ALL THROUGH

EQUALIZER DUAL STROMBERG INTAKE MANIFOLD AS SENT

FOUR INTO ONE RED'S HEADER, DYNO MUFFLER

27 DEGREES TOTAL TIMING

PIRANIO'S ANTIQUE AUTOMOTIVE

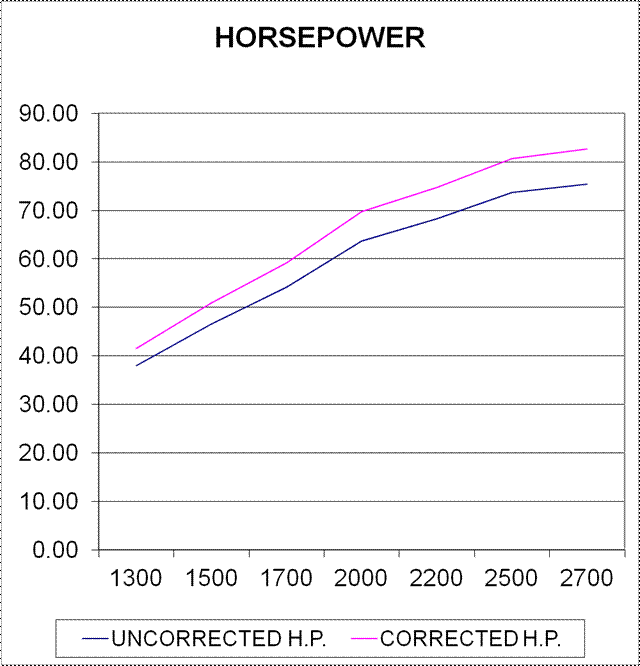

DYNO SHEET - HORSEPOWER GRAPH

PIRANIO'S ANTIQUE AUTOMOTIVE

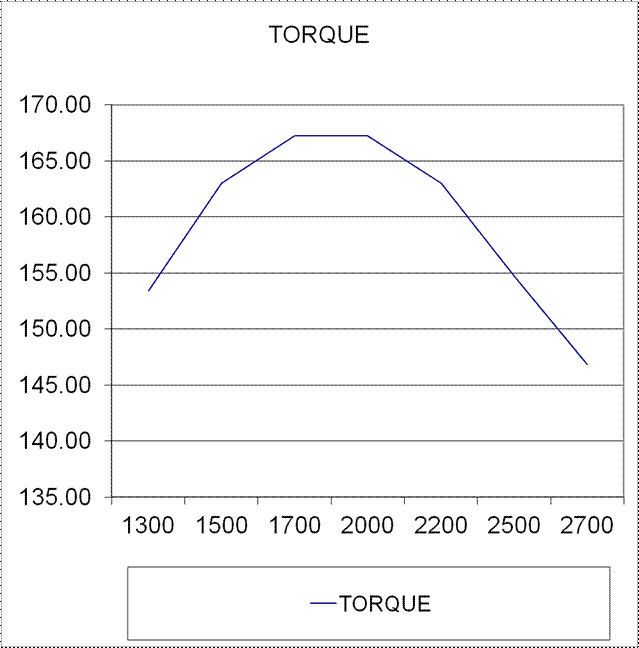

DYNO SHEET - TORQUE GRAPH
