PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
RUN NUMBER:
CUSTOMER: TEST AT NEW SHOP w WEBER CARB DATE: 9/2/2007
ADDRESS: 6195 FISHTRAP, DENTON, TEXAS 76208 PHONE:

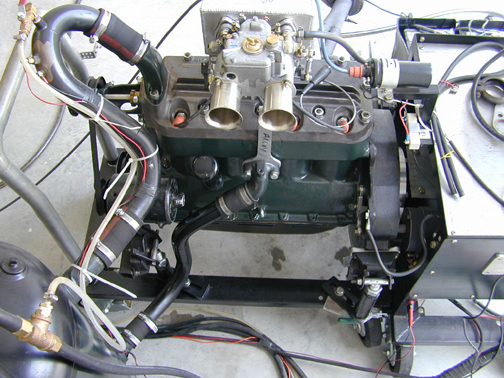

ENGINE: MODEL A FORD   TIME: 3:10 PM
ENGINE NUMBER: A 27684
BAROMETRIC PRESSURE: 30.02 ELEVATION: 590 TEMPERATURE: 94
STATION PRESSURE: 29.3863 CORRECTION FACTOR: 1.078791
HUMIDITY: 42
ENGINE  TEMPERATURE: 180 FUEL: PREMIUM 10% ETHANOL GASOLINE
            SHELL 94 OCTANE

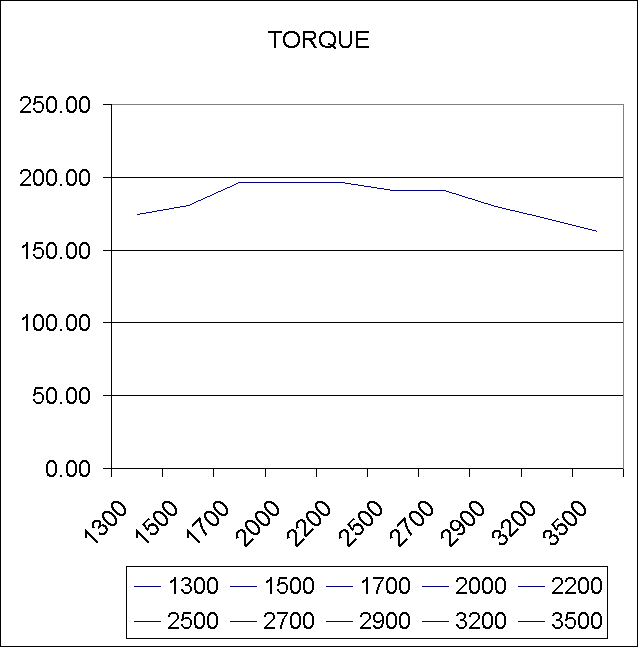

RPM GAUGE TORQUE HORSEPOWER CORRECTED
    READING           HORSEPOWER

1300 15 174.13 43.10 46.50
1500 15.6 180.82 51.64 55.71
1700 17 196.41 63.58 68.58
2000 17 196.41 74.79 80.69
2200 17 196.41 82.27 88.76
2500 16.5 190.84 90.84 98.00
2700 16.5 190.84 98.11 105.84
2900 15.5 179.70 99.23 107.04
3200 14.8 171.91 104.74 112.99
3500 14 163.00 108.62 117.18

DESCRIPTION: WEBER DCOE CARBURETOR, HAND MADE INTAKE MANIFOLD
27 DEGREES TIMING, HEADER, DYNO MUFFLER, 1.700" INTAKE VALVES,
PORTED BLOCK, CRANE F260/360-12 CAMSHAFT
LION 7.25-1 HEAD WITH MODIFIED CHAMBERS, "B" PATTERN INTAKE, "A" PATTERN EXHAUST
HEAD SURFACED .070" TO 111 C.C.
PIRANIO'S ANTIQUE AUTOMOTIVE

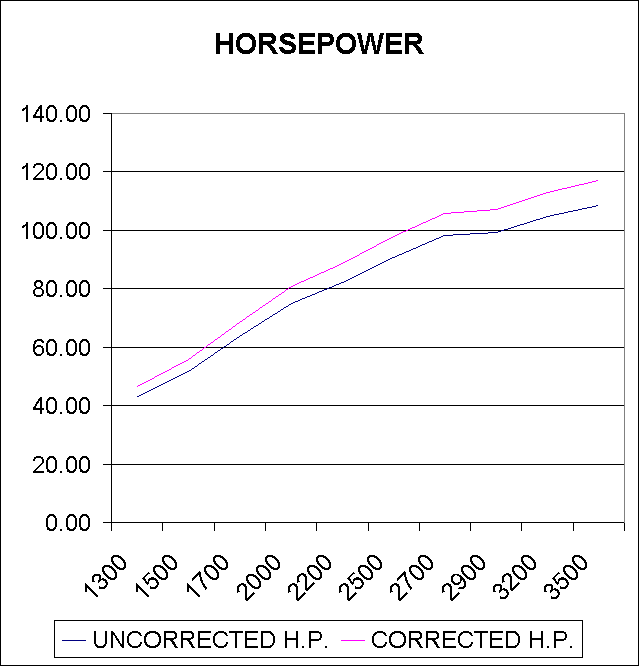

DYNO SHEET - HORSEPOWER GRAPH
