PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		1
CUSTOMER:		SHOP, STD TOURING ENGINE					DATE:	4/13/2006
ADDRESS:							PHONE:
ENGINE:	MODEL A FORD TOURING ENGINE						TIME:	3;00 PM
ENGINE NUMBER:		A 3372392
BAROMETRIC PRESSURE:			30.12	ELEVATION:		690	TEMPERATURE:		86
STATION PRESSURE:			29.3806			CORRECTION FACTOR:			1.078344
HUMIDITY:		52
ENGINE	TEMPERATURE:		180		FUEL:	GASOLINE, REGULAR
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1200		23.6		144.26		32.96		35.54
1300		23.8		145.33		35.97		38.79
1500		23.8		145.33		41.51		44.76
1700		23.2		142.11		46.00		49.60
2000		21.1		130.81		49.81		53.72
2200		20.1		125.43		52.54		56.66
2500		17.6		111.98		53.30		57.48
2700		16.1		103.91		53.42		57.60
				0.00		0.00		0.00
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:		TOURING ENGINE, ARIES MUFFLER, 26 DEGREES TIMING
FRESH ENGINE, 3 HRS RUN IN TIME
RINGS NOT FULLY SEATED, NEEDS ABOUT 300 MILES TO FULLY SEAT RINGS
MODEL A MANIFOLDS & ZENITH CARBURETOR
COUNTERWEIGHTED CRANKSHAFT, BALANCED ASSEMBLY
CENTER MAIN PRESSURE OILED
PISTONS WITH TEFLON COATED SKIRTS & CERAMIC COATED TOPS
CRANE TOURING CAMSHAFT
BRUMFIELD HEAD
PIRANIO'S ANTIQUE AUTOMOTIVE

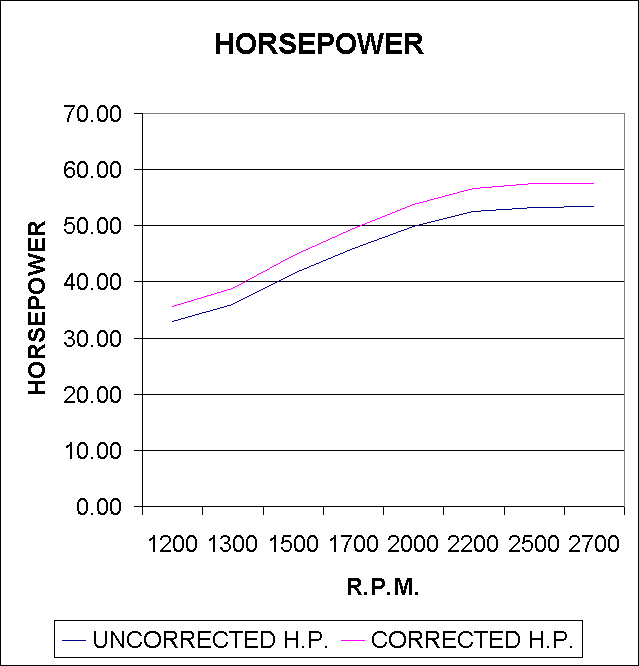

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
