PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
								RUN NUMBER:		1
CUSTOMER:		PIRANIO'S ANTIQUE AUTOMOTIVE						DATE:	5/2/2020
ADDRESS:		6195 FISHTRAP RD, DENTON, TEXAS						PHONE:	940-382-2742
ENGINE:	MODEL A FORD SUPER TOURING							TIME:	3:00
	TATTERSFIELD DUAL STROMBERG MANIFOLD TEST
ENGINE NUMBER:		27684			CU. IN.		211.06
BAROMETRIC PRESSURE:			29.89	ELEVATION:		590	TEMPERATURE:		81
STATION PRESSURE:			29.2563			CORRECTION FACTOR:			1.091563
HUMIDITY:		71
ENGINE	TEMPERATURE:		180		FUEL:	10% ETHANOL REGULAR GASOLINE
RPM		GAUGE	TORQUE	HORSEPOWER			CORRECTED		VOLUMETRIC
		READING					HORSEPOWER		EFFIECENCY
1300		14	158.81		39.31		42.91		87.57597
1500		14.4	164.38		46.95		51.25		90.64939
1700		14.5	165.80		53.67		58.58		91.43182
2000		14	158.81		60.48		66.01		87.57597
2200		13.9	157.44		65.95		71.99		86.82112
2500		13.4	150.73		71.75		78.32		83.12242
2700		12.9	144.24		74.15		80.94		79.54008
DESCRIPTION:
PIRANIO'S ANTIQUE AUTOMOTIVE HIGH PERFORMANCE STREET ROD ENGINE
BRUMFIELD 5.8-1 HIGH COMPRESSION HEAD
CRANE F-220/320-12 CAMSHAFT
PORTED BLOCK, 1.700" INTAKE & 1.530" EXHAUST VALVES
DUAL STROMBERG 81 CARBURETORS, 13-1 AFR ALL THROUGH
TATTERSFIELD  DUAL STROMBERG INTAKE MANIFOLD AS SENT
FOUR INTO ONE RED'S HEADER, DYNO MUFFLER
27 DEGREES TOTAL TIMING
PIRANIO'S ANTIQUE AUTOMOTIVE

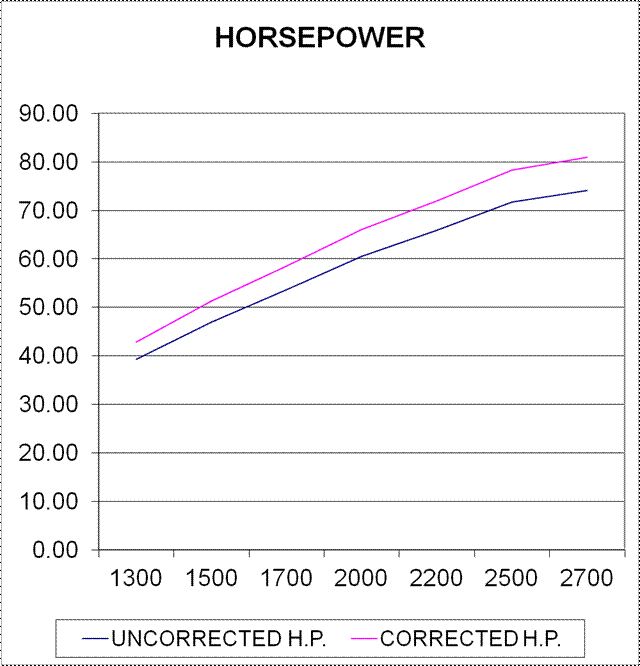

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE

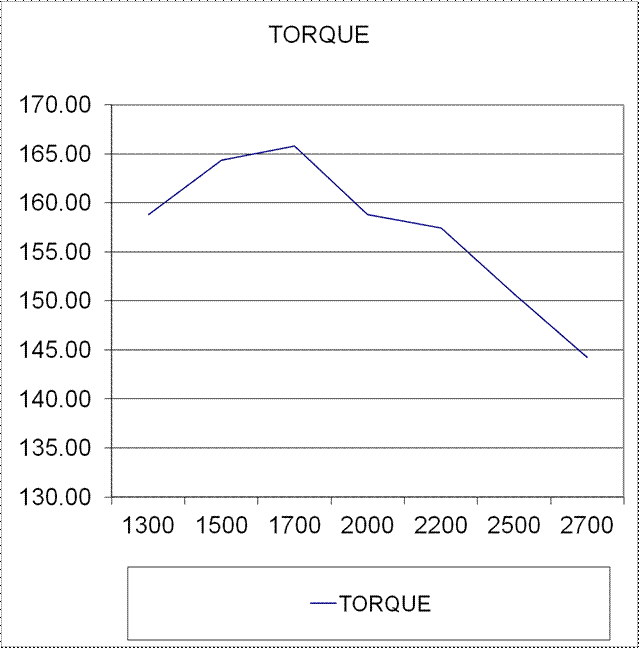

DYNO SHEET - TORQUE GRAPH
