PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		11
CUSTOMER:		SHOP					DATE:	3/5/2006
ADDRESS:							PHONE:
ENGINE:	SHOP STOCK						TIME:
BAROMETRIC PRESSURE:			30.1	ELEVATION:		690	TEMPERATURE:		77
STATION PRESSURE:			29.3606			CORRECTION FACTOR:			1.075929
HUMIDITY:		60
ENGINE	TEMPERATURE:		180		FUEL:	GASOLINE, REGULAR

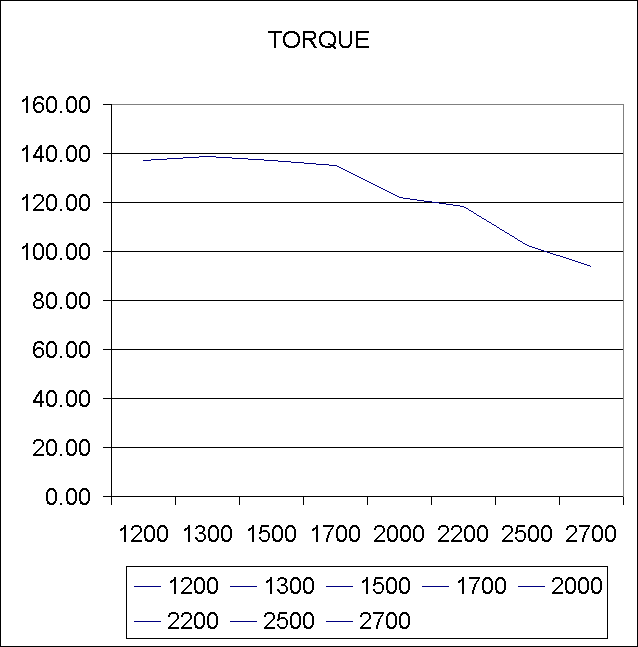

RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1200		22.3		137.26		31.36		33.74
1300		22.6		138.88		34.38		36.99
1500		22.3		137.26		39.20		42.18
1700		21.9		135.11		43.73		47.05
2000		19.5		122.20		46.53		50.07
2200		18.8		118.43		49.61		53.38
2500		15.8		102.29		48.69		52.39
2700		14.2		93.68		48.16		51.82
				0.00		0.00		0.00
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:		SNYDER HEAD 5.2-1 COMPRESSION,  28 DEGREES TIMING
	A MANIFOLD BORED OUT TO B SIZES, B CARBURETOR
THIS COMBINATION IS TYPICAL MANY TOURING ENGINES
PIRANIO'S ANTIQUE AUTOMOTIVE

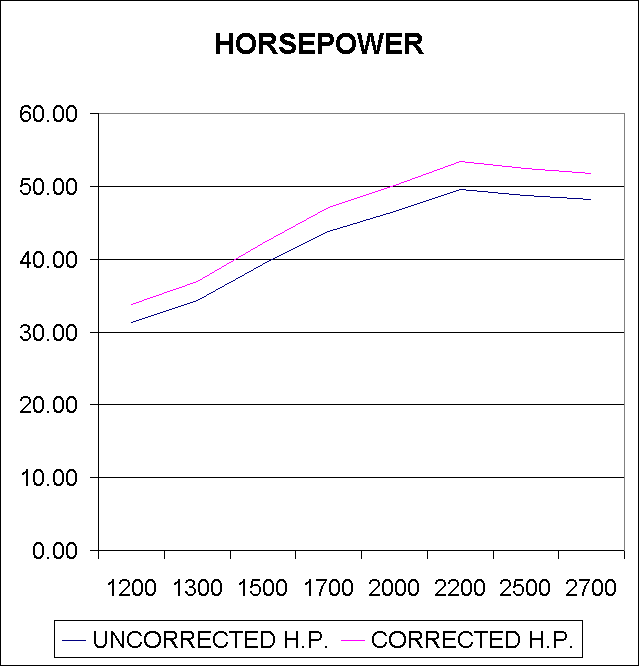

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
