PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		3
CUSTOMER:		SHOP					DATE:	2/15/2006
ADDRESS:							PHONE:
ENGINE:	DYNO STOCK						TIME:	2:30 PM
BAROMETRIC PRESSURE:			29.84	ELEVATION:		690	TEMPERATURE:		80
STATION PRESSURE:			29.1006			CORRECTION FACTOR:			1.080036
HUMIDITY:		48
ENGINE	TEMPERATURE:		180		FUEL:	GASOLINE, REGULAR
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1200		22.8		125.93		28.77		31.08
1300		22.6		124.86		30.90		33.38
1500		21.4		118.40		33.82		36.52
1700		20.3		112.48		36.41		39.32
2000		18.7		103.87		39.56		42.72
2200		16.6		92.57		38.78		41.88
2500		13.7		76.97		36.64		39.57
2700		12.5		70.52		36.25		39.15
				0.00		0.00		0.00
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:
STOCK ENGINE 30 DEGREES TIMING
MODEL B CARBURETOR & MODEL A MANIFOLD BORED OUT TO B SIZES
PIRANIO'S ANTIQUE AUTOMOTIVE

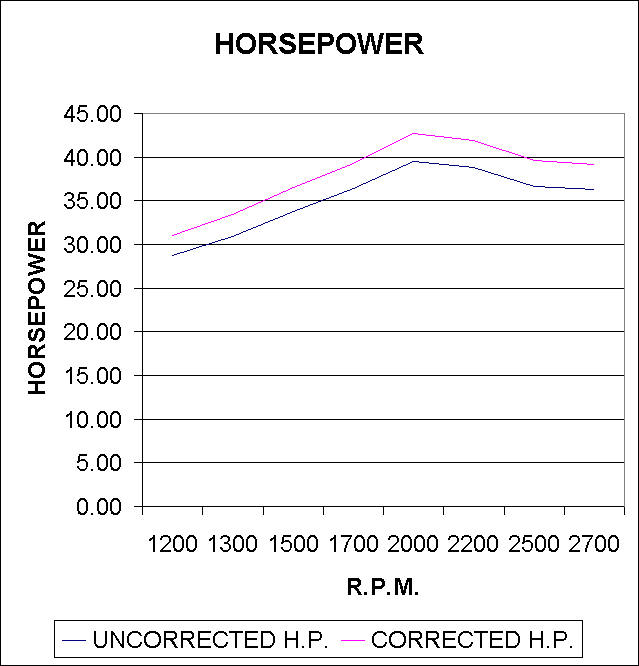

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
